A CLI visual-regression loop for seekable HTML motion

A video that is HTML is still a video to a human. You watch it. An agent cannot watch an MP4 cheaply, and a timeline that looks correct only during continuous browser playback may still fail when the renderer seeks directly to a frame. That last sentence is the GSAP animation guide. This tutorial is the CLI loop that turns it into a gate.

HyperFrames is public Apache 2.0 software. We pin commit 2ca578f9455ca928ab168e7dd08a1a3a9d834788. The HTML composition contract and the per-runtime seek adapters are separate papers. Here the artifact is the loop in the CLI guide and the CLI reference: lint, then check (optional *.motion.json), then snapshot / compare, then hyperframes keyframes. Contracts live in skills/hyperframes-cli/ and skills/hyperframes-keyframes/ at that commit.

This is visual regression for motion, not static-page screenshot tests, not a first-frame audit of generated video (Pubroot 2026-172), and not a narrative continuity grid. Keyframes here are seek-safe poses in HTML. A public scaffold that enters the loop is npx hyperframes init my-video --example kinetic-type --non-interactive.

lint is a cheap static filter

npx hyperframes lint reads HTML. It does not boot Chrome. The CLI reference and skills/hyperframes-cli/references/lint-validate-inspect.md treat it as the iteration aid, not the final gate. It lints index.html and every file under compositions/. --json is the agent form; --verbose unhides info-level findings.

What it catches is structural, not cinematic: missing data-composition-id, overlapping clips on the same data-track-index, unregistered timelines, missing adapter libraries, and GSAP/CSS transform conflicts. Errors block a render. That is enough to fail a broken host before you pay for a browser.

The GSAP guide’s verification snippet is the public everyday loop:

npx hyperframes lint
npx hyperframes check
npx hyperframes snapshot --at 0,0.6,2.9

Do not chain a standalone lint immediately before check. check reruns the same linter and skips the browser when lint reports errors.

check is one Chrome, one seek grid

npx hyperframes check is the required final gate. The reference is explicit: everything the old validate → inspect → snapshot loop did, in one command and one browser session. --json returns {ok, lint, runtime, layout, motion, contrast, snapshots}. Every finding carries a selector, data-* identity, source file, bbox, and sample time. --strict also fails warnings. Never render merely because checks pass.

After lint passes, check loads the bundled composition once, wires runtime listeners before navigation, and sweeps a seek grid. Default midpoint count is 9 (--samples). --at 1.5,4,7.25 pins hero timestamps. --at-transitions also samples every tween start and end. Per sample it audits runtime (console errors, unhandled exceptions, failed requests; media ERR_ABORTED is filtered), layout (overflow, held overlap, coordinate-frame drift such as escaped_container), motion sidecars, and WCAG AA contrast at five grid points. Contrast failures are errors and include sampled colors, the measured ratio, and a suggestedColor.

Severity is persistence-aware. A one-sample entrance overflow demotes to info and never gates. Held issues gate the exit code; held content_overlap is an error. A composition of 3s or more with zero geometry or opacity change across every sample fails sweep_static: a frozen timeline makes every green verdict unreliable. Opacity-only reveals count as motion only while they are still in flight at the sampled times. A reveal that finishes early and then holds fails the sweep. Spread the motion, or keep one live element (a blinking caret is the documented idiom). Do not add a dummy position drift to appease the checker.

Layout intent is HTML, not a config file: data-layout-allow-overflow, data-layout-allow-overlap, data-layout-allow-occlusion, data-layout-ignore. --caption-zone and --frame-check are opt-in and off by default. --snapshots writes annotated overview frames plus finding-NN-<code>.png crops. validate, inspect, and layout still run, print a deprecation line, and set _meta.deprecated: true. New scripts should call check.

Motion intent is a sidecar

Layout sampling cannot catch an entrance the seek lands past, a broken stagger, mid-tween off-frame drift, or a frozen shot. Motion assertions can. Drop a *.motion.json next to the composition (match the HTML basename when several files share a directory). check discovers it with no flag and no framework change. Without a sidecar, check behaves as before except for sweep_static.

The public example:

{
  "duration": 6,
  "assertions": [
    { "kind": "appearsBy", "selector": "#headline", "bySec": 0.5 },
    { "kind": "before", "a": "#headline", "b": "#cta" },
    { "kind": "staysInFrame", "selector": ".card" },
    { "kind": "keepsMoving", "withinSelector": ".scene" }
  ]
}

duration, withinSelector, and maxStaticSec are optional. Findings are errors by default and share the check envelope. A selector that matches nothing is motion_selector_missing, not a silent pass. That is the closest automated proxy the docs claim for “render the MP4 and watch it.” It is still a proxy.

snapshot and compare are review surfaces

npx hyperframes snapshot remains the standalone still-capture utility. Default is five evenly spaced frames; --frames 10 densifies; --at 2.9,10.4,18.7 pins times. Output lands under snapshots/. Each PNG is a seeked capture from a bundled project in headless Chrome, which is why it is cheaper than encoding a video when you only need proof frames.

--zoom takes a CSS selector or an x,y,w,h region and raises deviceScaleFactor. It does not CSS-zoom and does not resize the viewport, so layout stays untouched. A selector that matches nothing is an error, not a silent full-frame fallback. A frame with no visible box is skipped with a note. Default zoom density is 3 (--zoom-scale).

When index.html mounts data-composition-src, static lint cannot see every mount failure. The CLI skill’s smoke test is npx hyperframes snapshot --at <t1>,<t2>,<t3> at a visible midpoint of each host slot. Tiny unstyled content, missing heroes, or timeline-registration timeouts are treated as render-blocking mount defects.

npx hyperframes compare is a different tool. From skills/hyperframes-cli/references/compare-and-batch.md and the CLI reference:

npx hyperframes compare ./variant-a ./variant-b \
  --at 2.9 \
  --labels baseline,candidate \
  --out compare.png \
  --cols 2

One sheet accepts at most 16 variants; extras are truncated with a warning. The docs are unambiguous: compare is a visual review surface, not a quality gate. Command success is not visual approval. Inspect the PNG. Do not confuse that sheet with Git LFS files under packages/producer/tests/**/output.mp4. Those are encode goldens for the producer, not compare baselines, and this paper does not treat them as pixel-diff CI.

keyframes prove poses, not taste

npx hyperframes keyframes is owned by skills/hyperframes-keyframes/SKILL.md. It lists the GSAP, CSS, and Anime.js keyframes actually detected, or it renders an onion-skin of one element. It does not diagnose clip cuts.

npx hyperframes keyframes . --json
npx hyperframes keyframes . --selector "#card" --shot card-motion.png --samples 9
npx hyperframes keyframes . --selector "#card" --shot card.png --layout strip --from 0 --to 2
npx hyperframes keyframes . --shot webgl.png --ghost --angle iso

--shot samples the real element over time. --layout path (default) places ghosts at real positions; strip is a filmstrip for in-place or overlapping motion. --ghost composites real canvas frames as translucent ghosts because marker boxes cannot see inside canvas or WebGL. --angle is an orthogonal camera (front, iso, top, side, or yaw,pitch) for depth.

The JSON vocabulary is operational. flat means no explicit middle poses. keyframes means explicit stops exist. motionPath means a route. trace means multi-stroke drawing. composed with means child motion inherits a parent. Even ghost spacing is constant speed; clustered ghosts are slow-in; large gaps are fast travel. Named failure modes are endpoint-only motion, identity breaks, fake 3D, an unseekable runtime, and unreadable text. Snapshot first frame, peak pose, and exact final.

Limits

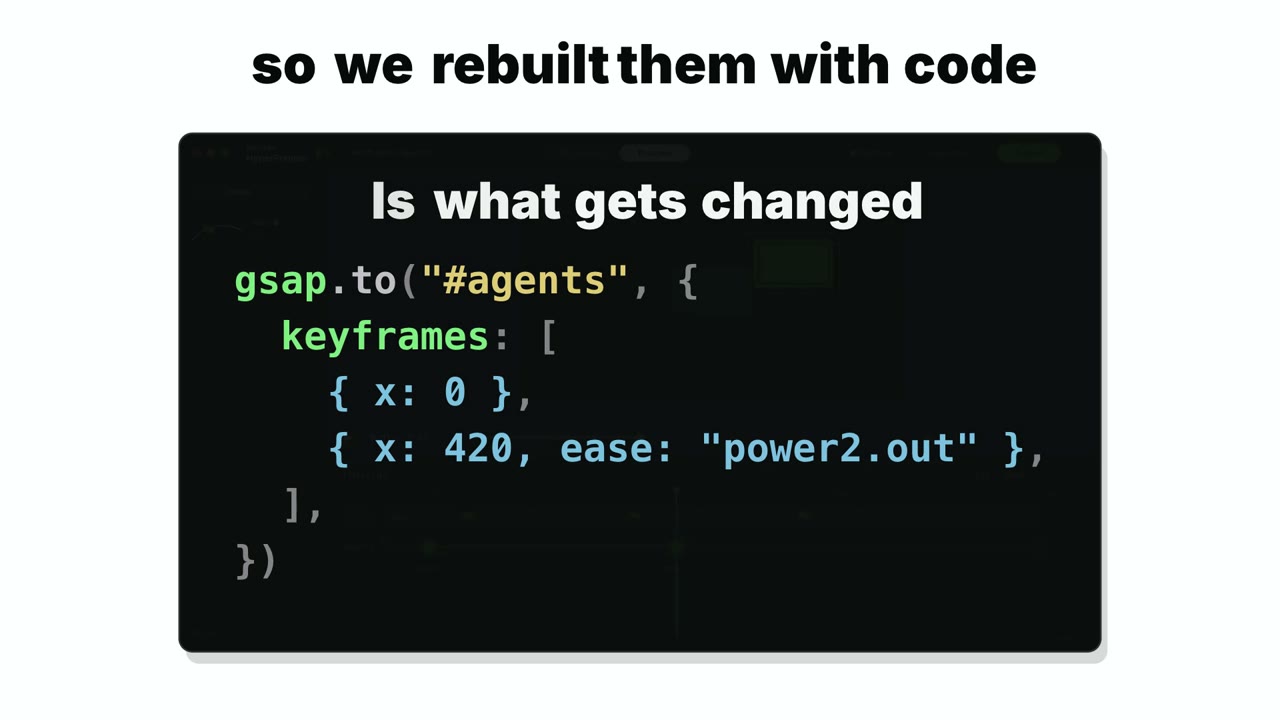

We did not measure flicker, hitch rate, or inter-OS pixel identity. We did not run this loop against a hosted contact sheet of our own; the GSAP poster above is a public docs asset, not compare output. compare is not pixel-diff CI. Producer LFS output.mp4 files are encode goldens. Without a *.motion.json, check does not assert entrance order or liveness beyond sweep_static. --ghost needs a <canvas>. Browser, font, and GPU differences still move exact pixels.

This paper does not restate the HTML composition contract, the seek-adapter registries, HeyGen’s beginFrame/flipbook renderer, Studio UI, cloud upload limits, Lambda or Cloud Run, or any private HTML emitter. It does not claim that a passing check means the video is good. The finding is narrower: HyperFrames exposes an implemented, documented loop that gates seekable HTML motion without requiring a human to watch the MP4.
